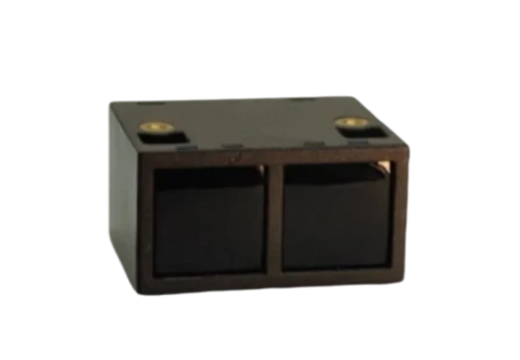

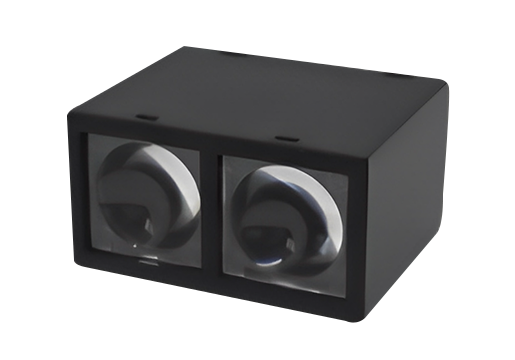

MVR2EA Ranging Sensor (Indoor version)
  • Effective measuring range: 0.2-7 m
  • Small size: 30mm*16mm*24mm, easy to install, easy to integrate
  • Light weight: ≤9g. Applicable to scenarios with strict load requirements
  • LED light source: (passed EN62471 test), suitable for eye safety scenarios
  • Low power consumption >0.4W, suitable for low power consumption
  • Customizable: LED, Vcsel light source, different range distance, different communication methods

MVR2EA is the Ranger 2 series of cost-effective ranging module, using TOF(Time-of-Flight) technology, 850nm infrared LED light source, with a unique optical, electronic, structural design of laser ranging module, can achieve 0.2 to 7 meters high-speed ranging requirements.

MVR2EA provides HEX and ASCII UART serial output data formats. The range module can obtain accurate distance information in different environments through rigorous temperature, ambient light and linear compensation. The two M2 metal nut bits at the bottom can make the installation more stable and secure, and can be loaded and unloaded repeatedly.



✓ Measuring distance 0.2~7 meters

✓ Measuring speed 1~200Hz adjustable *

✓ Small and exquisite: 30x16x24mm, weighing 9g

✓ LED light source, eye safety (passed EN62471 test)

* Maximum measurement speed is related to exposure time

Recommended application:

⚫ UAV obstacle avoidance and height fixing

⚫ Distance measuring instrument

⚫ Robot obstacle avoidance

⚫ SLAM Create a map

⚫ Security monitoring
