  • Ranging range: 0.1-1.5 m (indoor)
  • Depth accuracy: <1%@0.1-1.5m
  • Resolution/frame rate: 1280 x 800@7fps / 640 x 400@30fps
  • Effective field of view: 77°(±3°) x 54.7°(±3°)
  • Structure size: 90x 25x 25mm
  • Data format: depth map, point cloud map

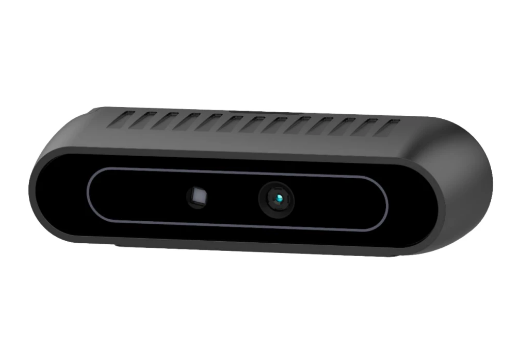

   The iHawk070 module is a 3D camera based on the structured light technology solution. The products can be widely used in industrial control, consumer electronics and other fields that require close-range 3D image application scenarios.

The technical scheme of the product consists of three parts: optical device, image processing hardware and software. Products can provide high precision depth map; The product has no computing power requirements for the back-end platform, and all the deep computing is completed in the module, and provides customers with self-developed SDK for the full platform, supporting Android/Windows/Linux, which can meet the needs of different industry applications.



✓ Ranging range: 0.1-1.5 m (indoor)

✓ Depth accuracy: <1%@0.1-1.5m

✓ Depth resolution/frame rate: 1280 x 800@7fps / 640 x 400@30fps

✓ Power supply: USB 5V

✓ Power consumption/current: 2W/200mA

✓ Operating temperature: -10°C~60°C

✓ Firmware function: Firmware upgrade, OTA support, automatic start after the upgrade

Recommended application:

⚫ Mobile robot obstacle avoidance

⚫ AGV obstacle avoidance, unmanned forklift obstacle avoidance

⚫ tray identification and positioning

⚫ three-dimensional space modeling

⚫ Attitude recognition and judgment of moving target
