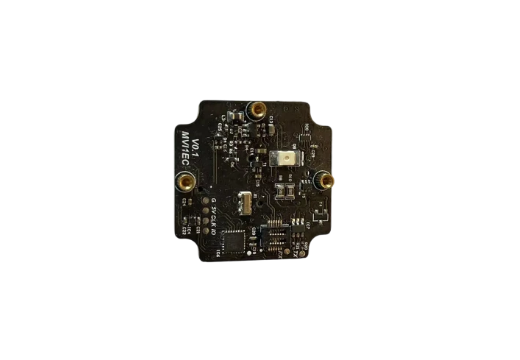

MVI3EC Medium Long Range Sensor (Outdoor version)
  • Effective measuring range: 0.3-58 meters
  • Small size: 32mm*32mm*16mm, easy to install, easy to integrate
  • Support structure: flexible application, convenient user integration, secondary development
  • Anti-sunlight >80Klux, suitable for harsh outdoor sunlight scenes
  • Light weight: ≤8g, suitable for scenarios with strict load requirements
  • Customizable: different range distance, different communication interface

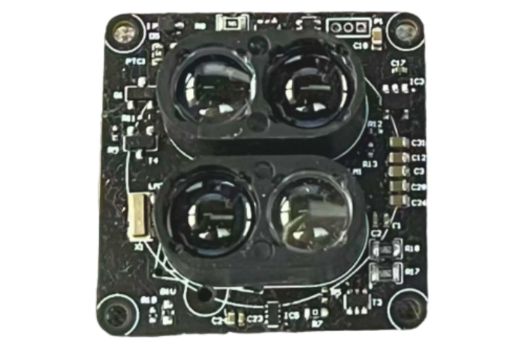

MVI3ECD is a cost-effective ranging module of MoeVision Ranger 3 series. It adopts Time-of-Flight (TOF) technology, 940nm VCSEL light source, and unique optical, electronic and structural design. Ranging requirements (indoor and outdoor) from 0.3 to 58 meters can be achieved. The MVI3ECD provides two UART serial port output data formats: HEX and ASCII.

The range module can obtain accurate distance information in different environments through rigorous temperature, ambient light and linear compensation.



✓ Measuring distance 0.3~58 meters

✓ Measuring speed 1~200Hz adjustable *

✓ Small and exquisite: 32x32x16mm, weighing 8g

* Maximum measurement speed is related to exposure time

Recommended application:

⚫ UAV obstacle avoidance and height fixing

⚫ Distance measuring instrument

⚫ Robot obstacle avoidance

⚫ SLAM Create a map

⚫ Security monitoring
